Home/ Products / High-precision five-axis CNC shoe last milling machine DC6060A
High-precision five-axis CNC shoe last milling machine DC6060A
The DC6060A high-precision 5-axis CNC shoe last milling machine offers outstanding precision and efficiency, expertly designed to cater to the varied requirements of the shoe mold sector. Discover a cost-effective and user-friendly machining solution that can seamlessly manage even the most intricate components.
Ningbo Kaibo CNC Machinery Co., Ltd. Ningbo, Zhejiang, China
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135436/4产品5-axis-shoe-last-cnc-milling-machine-dc6060a-1.png
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807110359/5-axis-shoe-last-cnc-milling-machine-dc6060a-2.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807110359/5-axis-shoe-last-cnc-milling-machine-dc6060a-3.jpg
Recommended Products
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135623/4产品5-axis-shoe-last-cnc-milling-machine-dc6060a-1.png
5-axis Sole Mold Milling Machine DC6060A
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135545/1产品dry-vacuum-graphite-machining-center-dc6060g-1.png
Dry Vacuum Graphite Machining Center DC6060G
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135525/1产品dry-vacuum-graphite-machining-center-dc6060g-1.png
Wet Graphite Machining Center DC6060G
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240820135402/5产品5-axis-shoe-last-cnc-milling-machine-dc6070-1.png
5-axis Shoe Last CNC Milling Machine DC6070
Product Parameters
Accuracy
positioning accuracy: 0.01/300 mm
Repeatability: 0.005 mm
See more
Workbench
working desk size: 610*600mm
T-slot dimensions: 5T-16-125 mm
Maximum load: 300 kg
Automatic Fixture
Turntable diameter: 225 mm
Rotation center height: 135 mm
Fixed: Electromagnet
Rotation range A axis -120°~120°: Depends on the workpiece
Depends on workpiece C axis 0°~360°: Depends on the workpiece
drive: AC servo motor
Processing range
X/Y/Z axis travel: 600/600/260 mm
Gantry width: 700 mm
Beam to workbench: 700 mm
Spindle nose to worktable: 330-590 mm
Feed
Maximum feed speed G00: 12m/min
Maximum processing speed G01: 8m/min
X/Y/Z axis motor power: 850W/850W/850W
Spindle
Spindle motor power: 5.5 kW
Maximum spindle speed: 24000 rpm
Tool holder: BT30

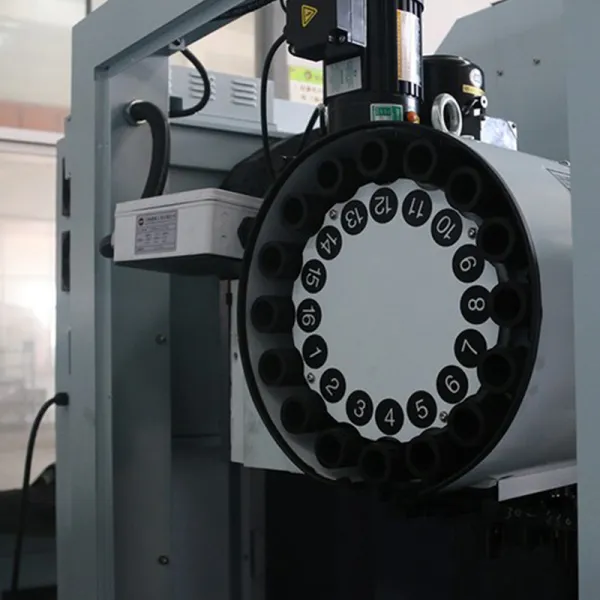

Tool magazine
ATC Type: Arm Type
Air traffic control capabilities: 16 items
Common
Power supply and total capacity: 3P/380V/50Hz/12KVA
Machine weight: 4500 kg
aspect: 2200*1800*2200mm
The main components

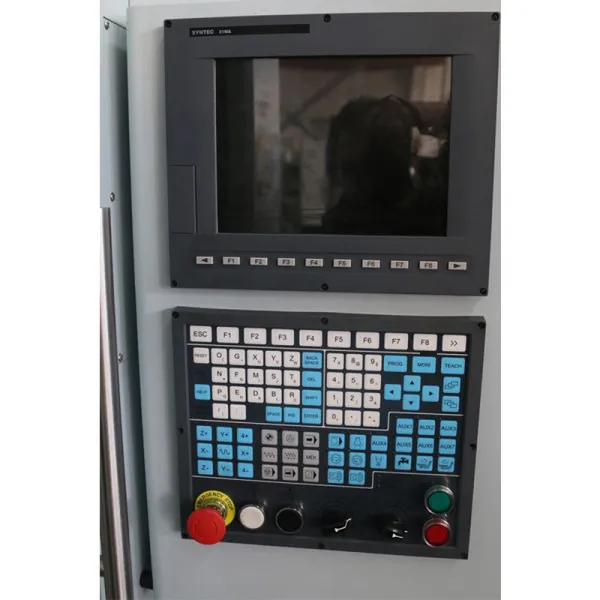

Controller: Syntec 21MA/Taiwan
AC servo motor (driver): Yaskawa/Japan
Spindle inverter: Innovation/China
Linear Guides: 30 Hiwin, PMI/Taiwan
Ball Screw: 2810 Hiwin, PMI/Taiwan
Electronic handwheel: EHDW-BA5S-1 Future/Taiwan
Lubrication system: YET-A2P2 ISHAN/Taiwan
Oil Cooler: Parsonshal/China
Close
Product Details
Product Introduction
5-axis shoe last CNC milling machine DC6060A is designed for shoe mold manufacturers. It is based on the CNC milling machine DC6060A and equipped with a rotary table specially designed for making shoe molds. This machine is cost-effective, user-friendly and a star product in the shoe mold industry.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807110359/5-axis-shoe-last-cnc-milling-machine-dc6060a-5.jpg
Advantages and features
1. Cost-effective and user-friendly design
2. Designed specifically for shoe mold manufacturing
3. The rotary table independently designed and developed by KAIBO
4. Integrated tilting table to improve processing performance
5. High precision and strong rigidity
6. Magnetic disk on rotating table for fixture-free clamping
7. Suitable for beginners of 5-axis machining
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240807110359/5-axis-shoe-last-cnc-milling-machine-dc6060a-3.jpg
Application Scenario
1. Shoe mold manufacturing
2. Small and medium-sized processing tasks
3. Efficient processing of complex parts
4. Industries requiring high precision and high rigidity
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240822094526/1724291141571_5-axis-shoe-last-cnc-milling-machine-dc6060a-4.png
Ordering Information
Custom Request
Our products support customization!
Packing and shipping
Support wooden box packaging and vacuum tin foil packaging;
All packaging complies with ocean, truck and railway standards;
Payment method
COMM
COMM
L/C
L/C
T/T
T/T
A/P
A/P
O/A
O/A
D/P
D/P
D/A
D/A
Refunds
If there is any problem with the product, please contact us at the first time.
Corporate Information
Ningbo Kaibo CNC Machinery Co., Ltd.
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/科学技术成果登记证书-精密高效快速数控钻铣复合加工中心的关键技术研究及产业化.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/科学技术成果登记证书-基于YSNTEC控制系统的图形对话式自动编程系统软件在高性能雕刻机中的应用.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/科学技术成果登记证书-五轴联动告诉精密雕铣机数控系统关键技术研究及开发.jpg
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60f057d7801008393c7f3dd7/66a70b5c6ab1dc323153e13a/20240731151209/浙江制造认证证书%202024.11.27.jpg
100%
On-time delivery rate
Less than 3 hours
Response time
52000
Construction area
Service Guarantee
Service Information
Tel
+86-15805747758
Email
[email protected]
Address
Industry Area of ​​Changjie, Ninghai, Ningbo, Zhejiang, China
Call Now
Advisory Message
Pre-sales advice
Equipment can be customized according to your requirements (machine configuration, color...)
After-sales service
1. After-sales guarantee: We provide one-year free quality assurance service for the products we sell to ensure the stability and reliability of the products.
2. Technical support: The company has 26 sales service offices, equipped with professional technicians, who can answer customer questions online 24/7 and provide remote or on-site technical support.
3. Training service: Provide customers with free operation and maintenance training to ensure that customers can use and maintain the equipment proficiently.
4. Accessories supply: Provide original accessories for a long time to ensure the continuous and normal operation of customers' equipment.
5. Customer Feedback: Respond to customer feedback in a timely manner and continuously improve products and services to meet customer needs to the greatest extent possible.
Specific details
Please contact us
Product Specifications Reference
Spindle type
ER25/5.5kw/24000rpm electric spindle NBT30/5.5kw/24000-30000rpm electric spindle NBT30/7.5kw/24000-30000rpm electric spindle HSK E40/5.5-7.5kw/30000rpm electric spindle More spindles
Tool magazine type
Straight tool magazine (6 pieces) Arm type tool magazine (20 pieces) Umbrella tool magazine (10 pieces) Umbrella tool magazine (14 pieces)
